WQL(S) series
CC independent driver(Casambi)
Features
·Integrated Casambi wireless module for the Casambi wireless ecosystem
·Support Casambi Wireless Long Range(LR) mode network
·Support advanced functions such as EL,CLO
·The output current and more functions of the driver can be realized through the NFC interface
·Supports quick construction of Casambi networks with up to 250 devices
·Casambi wireless mesh networking, stable work
·Using HPC patented technology, at any dimming level, the brightness of the lights is the same
·Soft dimming and flicker-free at any brightness
·Support for over-the-air firmware updates with Casambi APP
·High PF, high efficiency, low THD
·Optional Junction box: support up to 2.5mm² cable and loop-through function
·Screw-free and pressing type strain relief, supports thicker cables and is easier to install
·Independent input and output strain relief, stronger wiring
·Intelligent LED hot-plug protection function
·SELV and Class II design, suitable for use outside or inside of the light
·Compliance with CE,EL and other certifications
·5.5-year guarantee


Parameters
Model | Input voltage | Output power | Output voltage | Output current | PF | Efficiency | THD | Ta | Tc | Dimension(mm) |
BK-WQL042S-AHC1050AWCP | 200-240VAC/DC | 42W | 6-54VDC | 0.3-1.05A | 0.97 | 90.5% | 9% | 60℃ | 85℃ | L97.5*W44*H23.4(Built-in) L137.5*W44*H23.4(Independent) |
BK-WQL042S-AHC1050AWCN | 200-240VAC/DC | 42W | 6-54VDC | 0.1-1.05A | 0.97 | 90.5% | 9% | 60℃ | 85℃ | L97.5*W44*H23.4(Built-in) L137.5*W44*H23.4(Independent) |
Suffix WCP:Casambi Wireless
Suffix WCN:Casambi Wireless+EL+CLO+NFC programmable
Specifications
Item | Parameter |
Rated voltage | 200-240VAC 200-240VDC |
Limited voltage | 180-264VAC 180-264VDC |
Overoltage protection | <380 VAC |
Protection class | Class II |
Output current accuracy | ±5% |
Dimming range | 0.1%-100% |
Power on time | <0.7s(AC start),<0.7s(DC start),<0.3s(AC/DC switchover),<0.5s(Turn off ) |
Standby power | <0.5W |
No-load voltage | 59VDC |
Surge | L-N:2KV |
Flicker-free | -20-60℃ |
IP rating | IP20 |
Life time | Normal 100000 hours |
Warranty | 5.5 years |

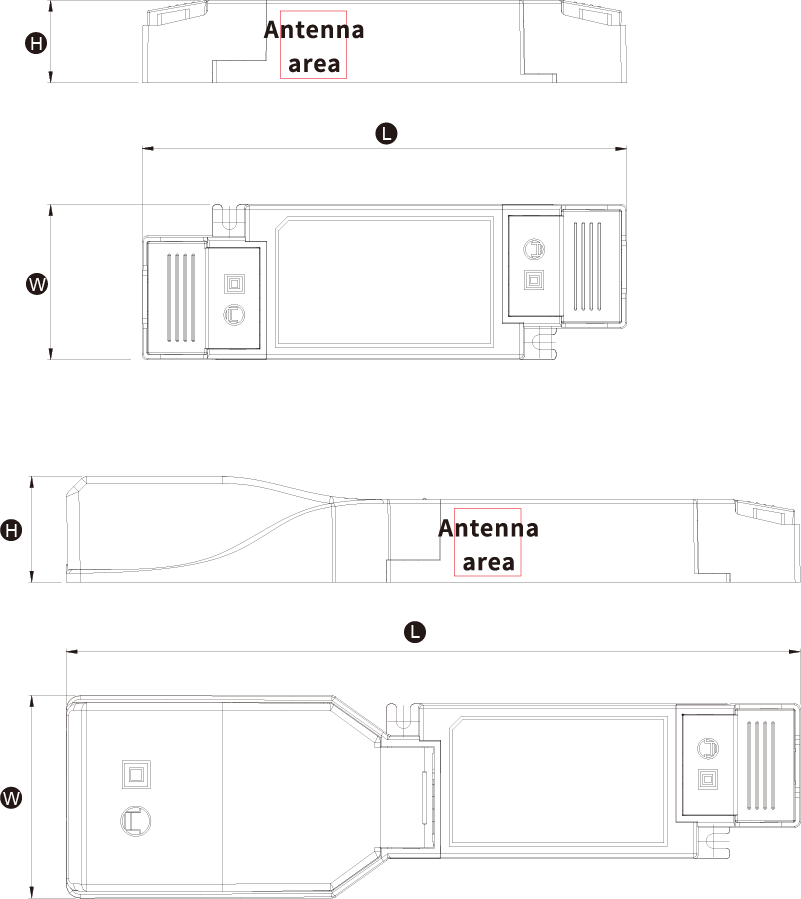

Dimension(unit:mm)
